The Ultimate Cinema Screen
Acoustically Transparent
HDR LED Cutting-Edge Technology
Cinematic brilliance like never before
Overview
Breathtaking visuals. Pristine audio. TRICORNE’s ultra-thin, acoustically transparent cinema LED screen is DCI-certified for SDR, HDR, and 3D—built for theaters of any size, from 7 meters (23 feet). With a floor-to-ceiling, wall-to-wall display, experience cinema that’s brighter, sharper, and more immersive than traditional projection. Effortlessly upgrade your existing auditoriums. Seamlessly replace outdated setups with TRICORNE LED.
The future of cinema is here. Step into next-gen HDR performance with long-life, future-proof LED technology.
ACOUSTICALLY TRANSPARENT
DCI-P3
HIGH
DYNAMIC RANGE
HIGH
GRAYSCALE
HIGH
CONTRAST RATIO
SCALABLE
DIVERSIFIED APPLICATIONS
Key Features

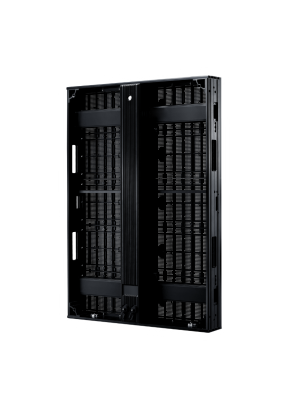

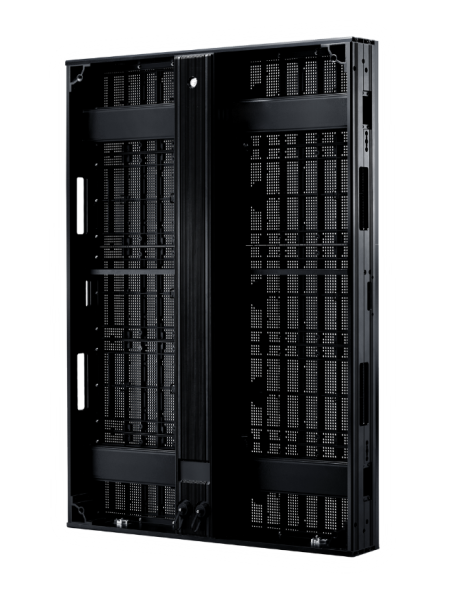

Acoustically Transparent Perforated Design
Full Sound Transmission :
Engineered for speakers behind the LED.
Universal Compatibility :
Supports conventional cinema speaker system layouts and is compatible with immersive audio formats.
Total Reflection Elimination :
Complies with acoustic design standards. The screen’s sound-transmitting perforations absorb and eliminate noise, delivering cleaner and purer audio quality.
Seamless Modular Design

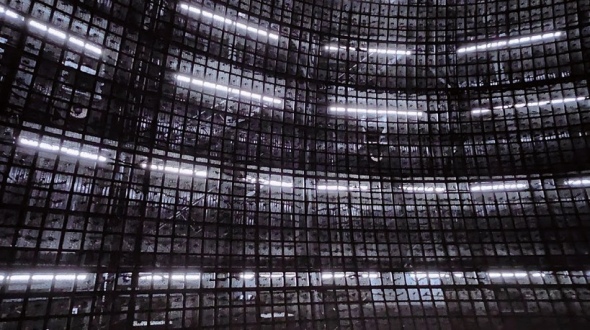

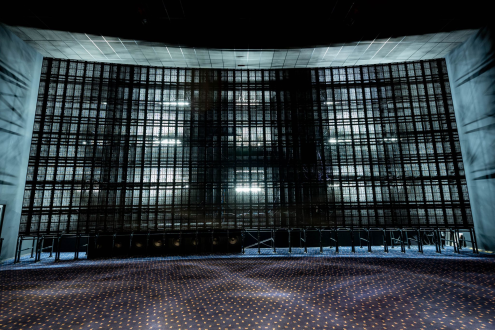

Floor-to-Ceiling and Wall-to-Wall :
Perfect for the Auditorium. Designed with modular and scalable adaptability to deliver resolutions that exceed conventional size limits.
Unmatched Visual Excellence
Outstanding Visuals :
Ultra-wide DCI-P3 color gamut, HDR (High Dynamic Range) and HFR (High Frame Rate).
Self-Illuminating Properties :
High brightness, high grayscale levels, and superior contrast ratio, deliver top-tier visual performance.
Specifications
- TC0704-33: 7.04m x 3.6m
- TC0832-40: 8.32m x 4.5m
- TC1024-50: 10.24m x 5.4m
- TC1408-33: 14.08m x 7.2m
- TC1664-40: 16.64m x 9.0m
- TC2048-50: 20.48m x 10.8m
- TH1024-25: 10.24m x 5.4m
- TH1408-33: 14.08m x 7.2m
- TC0704-33: 3.3 mm
- TC0832-40: 4.0 mm
- TC1024-50: 5.0 mm
- TC1408-33: 3.3 mm
- TC1664-40: 4.0 mm
- TC2048-50: 5.0 mm
- TH1024-25: 2.5 mm
- TH1408-33: 3.3 mm
- TC0704-33: 0.7 t (700 Kg)
- TC0832-40: 1.0 t (1,000 Kg)
- TC1024-50: 1.4 t (1,400 Kg)
- TC1408-33: 2.5 t (2,500 Kg)
- TC1664-40: 3.7 t (3,700 Kg)
- TC2048-50: 5.4 t (5,400 Kg)
- TH1024-25: 1.4 t (1,400 Kg)
- TH1408-33: 2.5 t (2,500 Kg)
- TC0704-33: 1.5 t (1,500 Kg)
- TC0832-40: 2.1 t (2,100 Kg)
- TC1024-50: 3.0 t (3,000 Kg)
- TC1408-33: 5.1 t (5,100 Kg)
- TC1664-40: 7.5 t (7,500 Kg)
- TC2048-50: 11 t (11,000 Kg)
- TH1024-25: 3.0 t (3,000 Kg)
- TH1408-33: 5.1 t (5,100 Kg)
TC0704-33 / TC0832-40 / TC1024-50 / TC1408-33 / TC1664-40 / TC2048-50 :
- 48 nits (SDR)
- 300 nits (Max)
TH1024-25 / TH1408-33 :
- 48 nits (SDR)
- 300 nits (HDR)
TC0704-33 / TC0832-40 / TC1024-50 / TC1408-33 / TC1664-40 / TC2048-50 :
- 60,000:1
TH1024-25 / TH1408-33 :
- 60,000:1
- TC0704-33: 1.3 kW
- TC0832-40: 1.6 kW
- TC1024-50: 2.0 kW
- TC1408-33: 4.4 kW
- TC1664-40: 5.7 kW
- TC2048-50: 7.3 kW
- TH1024-25: 3.0 kW
- TH1408-33: 4.4 kW
- TC0704-33: 1.6 kW
- TC0832-40: 2.0 kW
- TC1024-50: 2.6 kW
- TC1408-33: 5.6 kW
- TC1664-40: 7.4 kW
- TC2048-50: 9.7 kW
- TH1024-25: 3.6 kW
- TH1408-33: 5.6 kW
- TC0704-33: 3.4 kW
- TC0832-40: 4.7 kW
- TC1024-50: 6.6 kW
- TC1408-33: 13.0 kW
- TC1664-40: 18.2 kW
- TC2048-50: 25.6 kW
- TH1024-25: 7.8 kW
- TH1408-33: 13.0 kW
TC0704-33 / TC0832-40 / TC1024-50 / TC1408-33 / TC1664-40 / TC2048-50 :
- 160° (vertical) /160° (horizontal)
TH1024-25 / TH1408-33 :
- 160° (vertical) /160° (horizontal)
TC0704-33 / TC0832-40 / TC1024-50 / TC1408-33 / TC1664-40 / TC2048-50 :
- 16 bit
TH1024-25 / TH1408-33 :
- 16 bit
TC0704-33 / TC0832-40 / TC1024-50 / TC1408-33 / TC1664-40 / TC2048-50 :
- HDMI 2.1
TH1024-25 / TH1408-33 :
- HDMI 2.1
TC0704-33 / TC0832-40 / TC1024-50 / TC1408-33 / TC1664-40 / TC2048-50:
Active shutter 3D glasses (up to 48 nits, through glasses)
TH1024-25 / TH1408-33:
Active shutter 3D glasses (up to 48 nits, through glasses)
TC0704-33 / TC0832-40 / TC1024-50 / TC1408-33 / TC1664-40 / TC2048-50:
- Operating Temperature Range: 0℃ ~ +40℃ (32°F to 104°F)
- Non-Operating Temperature Range: -10℃ ~ +50℃ (14°F to 122°F)
- Storage Temperature Range: -20℃ ~ +50℃ (-4°F to 122°F)
TH1024-25 / TH1408-33:
- Operating Temperature Range: 0℃ ~ +40℃ (32°F to 104°F)
- Non-Operating Temperature Range: -10℃ ~ +50℃ (14°F to 122°F)
- Storage Temperature Range: -20℃ ~ +50℃ (-4°F to 122°F)
TC0704-33 / TC0832-40 / TC1024-50 / TC1408-33 / TC1664-40 / TC2048-50:
- Operating Humidity: 10%~70% Relative Humidity (non-condensation)
- Non-Operating Humidity Range: 5% ~ 70% Relative Humidity (non-condensation)
- Storage Humidity: 10%~90% Relative Humidity (non-condensation)
TH1024-25 / TH1408-33:
- Operating Humidity: 10%~70% Relative Humidity (non-condensation)
- Non-Operating Humidity Range: 5% ~ 70% Relative Humidity (non-condensation)
- Storage Humidity: 10%~90% Relative Humidity (non-condensation)
