Acoustically Transparent
HDR LED
The Ultimate Cinema Screen
Cinematic brilliance like never before
Overview
Breathtaking visuals. Pristine audio. Tricorne’s ultra-thin, acoustically transparent cinema LED screen is DCI-certified for SDR, HDR, and 3D—built for theatre of any screen size from 7m (23 feet) or larger. With a floor-to-ceiling, wall-to-wall display, experience cinema that’s brighter, sharper, and more immersive than traditional projection. Effortlessly upgrade your existing auditoriums. Seamlessly replace outdated setups with Tricorne Premium LED.
The future of cinema is here. Step into next-gen HDR performance with long-life, future-proof LED technology.
ACOUSTICALLY TRANSPARENT
TRUE
HDR,HFR,3D
DCI-P3
HIGH
CONTRAST RATIO
SCALABLE
DESIGN
DIVERSIFIED APPLICATIONS
Key Features
Acoustically Transparent Perforated Design

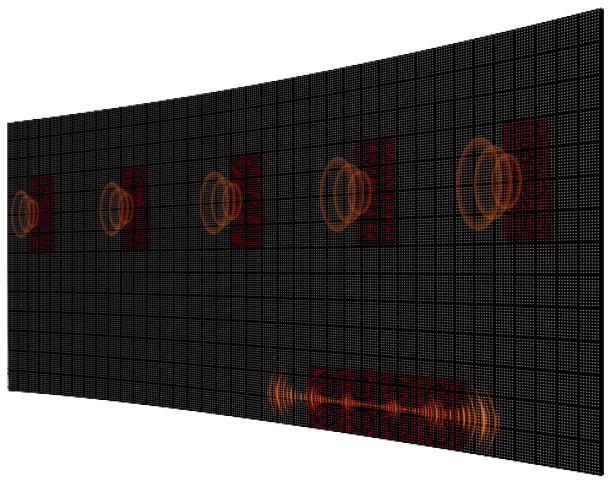

Full Sound Transmission :
Engineered for speakers behind the LED.The smallest acoustically transparent pixel pitch available, with either 2.5mm or 3.3mm.
Universal Compatibility :
Supports conventional cinema speaker system layouts and is compatible with immersive audio formats.
Total Reflection Elimination :
Complies with acoustic design standards. The screen’s sound-transmitting perforations absorb and eliminate noise, delivering cleaner and purer audio quality.
Seamless Modular Design
Floor-to-Ceiling and Wall-to-Wall :
Designed with modular and scalable adaptability to deliver resolutions that exceed conventional size limits.Available in flat or curved design to suit any auditorium.
Unmatched Visual Excellence
Outstanding Visuals :
Ultra-wide DCI-P3 color gamut, DCI CTP v1.5.0 direct view (HDR) certified——True HDR (High Dynamic Range), HFR (High Frame Rate) and 3D.
Self-Illuminating Properties :
High brightness, high grayscale levels, and superior contrast ratio, deliver top-tier visual performance, widest viewing angle, darker blacks.
Specifications
- 10.24m x 5.4m
- 7.04m x 3.6m
- 14.08m x 7.2m
- 8.32m x 4.5m
- 16.64m x 9.0m
- 10.24m x 5.4m
- 20.48m x 10.8m
- 10.24m x 5.4m – 2.5mm
- 7.04m x 3.6m – 3.3mm
- 14.08m x 7.2m – 3.3mm
- 8.32m x 4.5m – 4.0mm
- 16.64m x 9.0m – 4.0mm
- 10.24m x 5.4m – 5.0mm
- 20.48m x 10.8m – 5.0mm
- 10.24m x 5.4m(2.5mm) – 1.34t
- 7.04m x 3.6m(3.3mm) – 0.62t
- 14.08m x 7.2m(3.3mm) – 2.43t
- 8.32m x 4.5m(4.0mm) – 0.91t
- 16.64m x 9.0m(4.0mm) – 3.58t
- 10.24m x 5.4m(5.0mm) – 1.34t
- 20.48m x 10.8m(5.0mm) – 5.28t
- 10.24m x 5.4m(2.5mm) – 2.72t
- 7.04m x 3.6m(3.3mm) – 1.26t
- 14.08m x 7.2m(3.3mm) – 4.97t
- 8.32m x 4.5m(4.0mm) – 1.85t
- 16.64m x 9.0m(4.0mm) – 7.33t
- 10.24m x 5.4m(5.0mm) – 2,72t
- 20.48m x 10.8m(5.0mm) – 10.81t
- 10.24m x 5.4m(2.5mm) – 3.00kW
- 7.04m x 3.6m(3.3mm) – 1.21kW
- 14.08m x 7.2m(3.3mm) – 4.23kW
- 8.32m x 4.5m(4.0mm) – 1.50kW
- 16.64m x 9.0m(4.0mm) – 5.40kW
- 10.24m x 5.4m(5.0mm) – 1.89kW
- 20.48m x 10.8m(5.0mm) – 6.96kW
- 10.24m x 5.4m(2.5mm) – 3.70kW
- 7.04m x 3.6m(3.3mm) – 1.48kW
- 14.08m x 7.2m(3.3mm) – 5.34kW
- 8.32m x 4.5m(4.0mm) – 1.92kW
- 16.64m x 9.0m(4.0mm) – 7.09kW
- 10.24m x 5.4m(5.0mm) – 2.47kW
- 20.48m x 10.8m(5.0mm) – 9.26kW
- 10.24m x 5.4m(2.5mm) – 7.80kW
- 7.04m x 3.6m(3.3mm) – 3.24kW
- 14.08m x 7.2m(3.3mm) – 12.34kW
- 8.32m x 4.5m(4.0mm) – 4.49kW
- 16.64m x 9.0m(4.0mm) – 17.36kW
- 10.24m x 5.4m(5.0mm) – 6.25kW
- 20.48m x 10.8m(5.0mm) – 24.39kW
10.24m x 5.4m(2.5mm) / 7.04m x 3.6m(3.3mm) / 14.08m x 7.2m(3.3mm) / 8.32m x 4.5m(4.0mm) / 16.64m x 9.0m(4.0mm) / 10.24m x 5.4m(5.0mm) /
20.48m x 10.8m(5.0mm)：
- 48nits(SDR) 300nits(HDR)
10.24m x 5.4m(2.5mm) / 7.04m x 3.6m(3.3mm) / 14.08m x 7.2m(3.3mm) / 8.32m x 4.5m(4.0mm) / 16.64m x 9.0m(4.0mm) / 10.24m x 5.4m(5.0mm) /
20.48m x 10.8m(5.0mm)：
- 60,000:1
10.24m x 5.4m(2.5mm) / 7.04m x 3.6m(3.3mm) / 14.08m x 7.2m(3.3mm) / 8.32m x 4.5m(4.0mm) / 16.64m x 9.0m(4.0mm) / 10.24m x 5.4m(5.0mm) /
20.48m x 10.8m(5.0mm)：
- 48nits(SDR) 300nits(HDR)160° (vertical) /160° (horizontal)
10.24m x 5.4m(2.5mm) / 7.04m x 3.6m(3.3mm) / 14.08m x 7.2m(3.3mm) / 8.32m x 4.5m(4.0mm) / 16.64m x 9.0m(4.0mm) / 10.24m x 5.4m(5.0mm) /
20.48m x 10.8m(5.0mm)：
- 16 bit
10.24m x 5.4m(2.5mm) / 7.04m x 3.6m(3.3mm) / 14.08m x 7.2m(3.3mm) / 8.32m x 4.5m(4.0mm) / 16.64m x 9.0m(4.0mm) / 10.24m x 5.4m(5.0mm) /
20.48m x 10.8m(5.0mm)：
- HDMI v2.1
10.24m x 5.4m(2.5mm) / 7.04m x 3.6m(3.3mm) / 14.08m x 7.2m(3.3mm) / 8.32m x 4.5m(4.0mm) / 16.64m x 9.0m(4.0mm) / 10.24m x 5.4m(5.0mm) /
20.48m x 10.8m(5.0mm)：
Active shutter 3D glasses (up to 48 nits, through glasses)
10.24m x 5.4m(2.5mm) / 7.04m x 3.6m(3.3mm) / 14.08m x 7.2m(3.3mm) / 8.32m x 4.5m(4.0mm) / 16.64m x 9.0m(4.0mm) / 10.24m x 5.4m(5.0mm) /
20.48m x 10.8m(5.0mm)：
- Operating Temperature Range: 0℃ ~ +40℃ (32°F to 104°F)
- Non-Operating Temperature Range: -10℃ ~ +50℃ (14°F to 122°F)
- Storage Temperature Range: -20℃ ~ +50℃ (-4°F to 122°F)
10.24m x 5.4m(2.5mm) / 7.04m x 3.6m(3.3mm) / 14.08m x 7.2m(3.3mm) / 8.32m x 4.5m(4.0mm) / 16.64m x 9.0m(4.0mm) / 10.24m x 5.4m(5.0mm) /
20.48m x 10.8m(5.0mm)：
- Operating Humidity: 10%~80% Relative Humidity (non-condensation)
- Non-Operating Humidity Range: 5% ~ 70% Relative Humidity (non-condensation)
- Storage Humidity: 10%~90% Relative Humidity (non-condensation)
* Frame weights in the table exclude the base; base weight is additional and varies by project.
